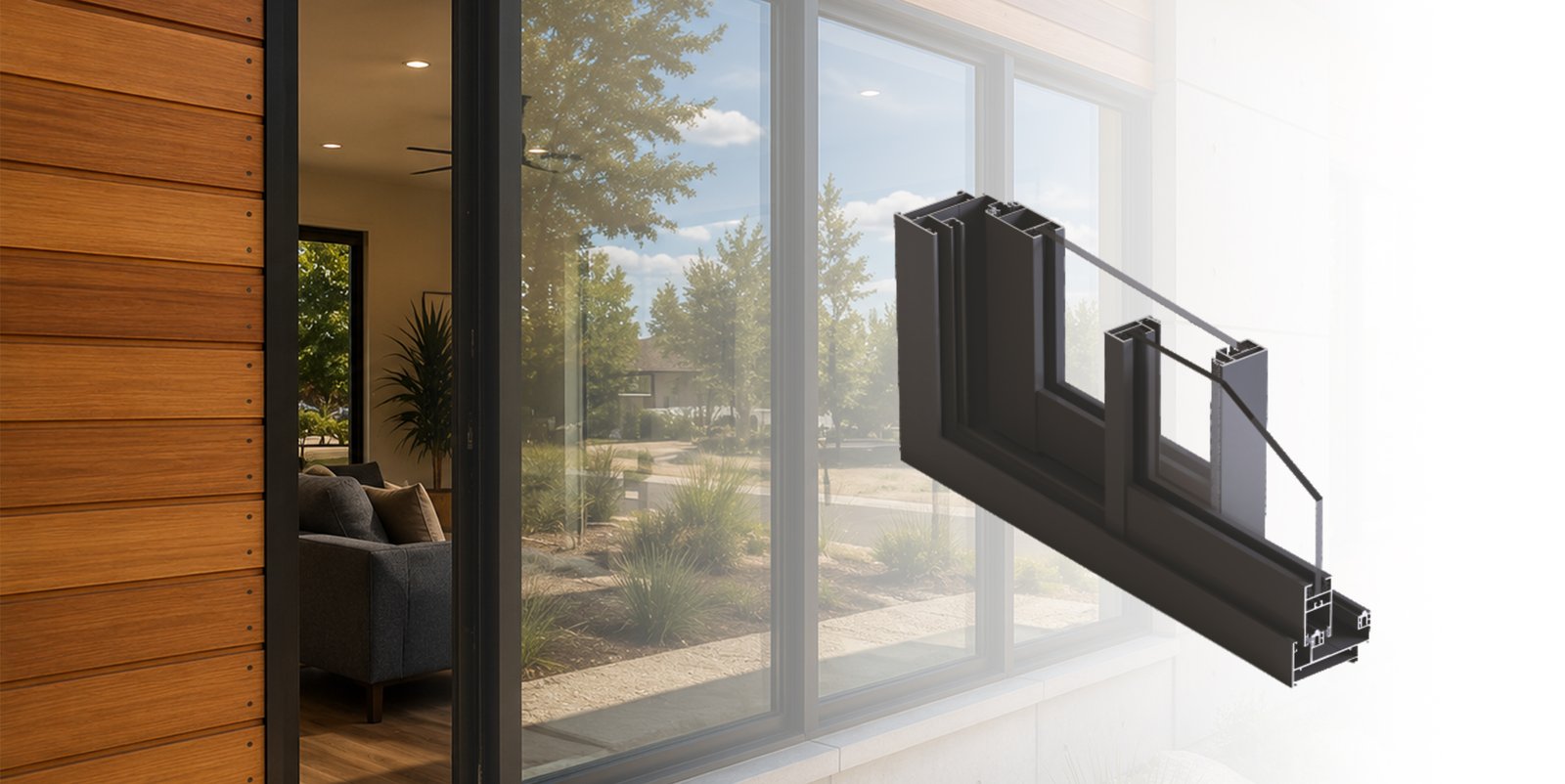

2.0 Lift & Slide Series
Premium Heavy-Duty Lift & Slide Aluminium Door System
The 2.0 Lift & Slide Series is a premium aluminium door system engineered for expansive openings, ultra-heavy glass panels, and luxury architectural applications. Manufactured using high-strength 6063-grade aluminium alloy, this advanced system combines effortless operation, exceptional structural strength, and elegant aesthetics to create seamless indoor-outdoor living spaces.
Designed to support up to 600 kg sash weight, glass thickness up to 34 mm, and door heights of up to 6000 mm, the 2.0 Lift & Slide Series delivers outstanding performance for high-end residential, hospitality, and commercial projects.
Luxury Sliding System for Grand Openings
The 2.0 Lift & Slide Series is developed for architects, designers, and builders seeking a premium sliding solution for oversized glass doors. Its innovative lift-and-slide mechanism allows even extremely large panels to glide smoothly with minimal effort while ensuring superior sealing, thermal efficiency, and security.
Whether used for luxury villas, penthouses, hotels, or commercial buildings, this system creates uninterrupted panoramic views with maximum natural light and contemporary elegance.
Key Features
Product Features
Advanced Lift & Slide Mechanism
The innovative lift-and-slide system raises the sash slightly during operation, reducing friction and allowing even very heavy panels to move smoothly and quietly.
Ultra Heavy-Duty Performance
Designed to support sliding panels weighing up to 600 kg, making it ideal for extra-large architectural openings.
Large Glass Compatibility
Supports glazing up to 34 mm, allowing the use of insulated, laminated, acoustic, and toughened glass for enhanced comfort and energy efficiency.
Premium Aluminium Construction
Manufactured using 6063-grade aluminium alloy to provide exceptional strength, corrosion resistance, and long-lasting durability.
Enhanced Security
Equipped with a multi-point locking system for maximum protection, stability, and secure operation.
Luxury Architectural Design
Creates expansive glass openings with minimal visual obstruction, providing panoramic views and seamless indoor-outdoor integration.
Technical Specifications
|
Specification |
Details |
|
Profile Alloy |
6063 Aluminium |
|
Maximum Door Height |
6000 mm |
|
Frame Corner |
45° |
|
Sash Corner |
45° |
|
Sash Size |
58.80 mm / 120.78 mm |
|
Weight Capacity |
Up to 600 kg |
|
Glass Thickness |
Up to 34 mm |
|
Locking System |
Multi-Point |
|
Mosquito Mesh Solution |
No |
|
2 Track Depth |
135 mm / 55 mm |
Ideal Applications
The 2.0 Lift & Slide Series is ideal for:
