35mm Gulf Extended Sliding Series
35mm Gulf Extended Sliding Series
Premium Heavy-Duty Aluminium Sliding Window & Door System

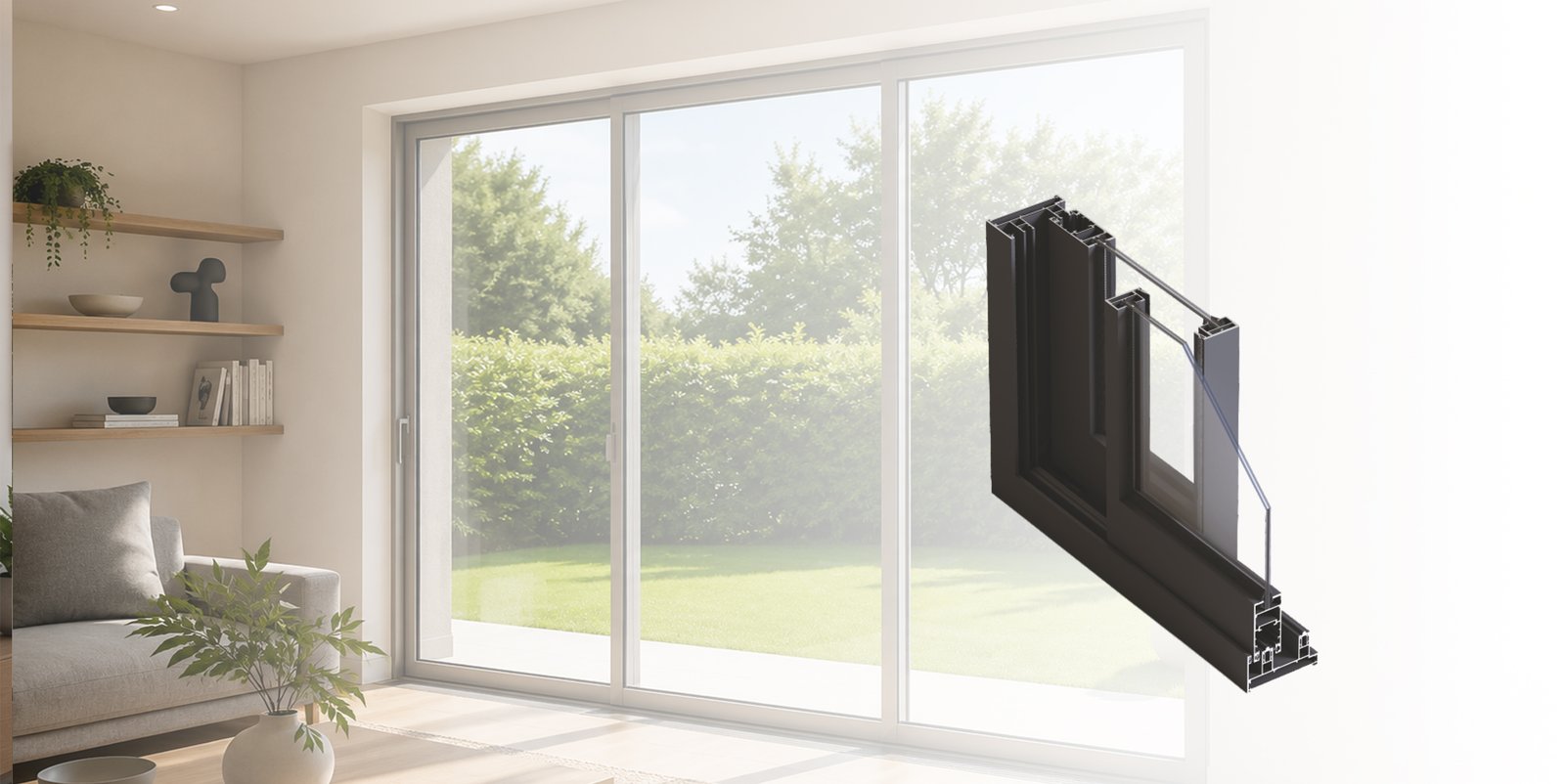

The 35mm Gulf Extended Sliding Series is a premium aluminium sliding system engineered for extra-large openings, heavy-duty performance, and modern architectural excellence. Manufactured using 6063-grade aluminium alloy, this series is designed to support larger panels with exceptional stability, making it an ideal choice for luxury residential, commercial, and high-rise projects.
With a maximum sash weight of 250 kg, support for glass up to 26 mm, and a maximum window height of 3300 mm, the 35mm Gulf Extended Sliding Series offers unmatched strength, smooth operation, and sophisticated aesthetics.
Designed for Large Openings & Premium Spaces
The 35mm Gulf Extended Sliding Series is specifically developed for projects requiring wider and taller sliding windows and doors. Its robust profile construction ensures superior load-bearing capacity while maintaining sleek, slim sightlines that maximize natural light and panoramic views.
Whether used in luxury villas, premium apartments, hotels, office buildings, or commercial developments, this sliding system delivers exceptional durability, smooth performance, and long-term reliability.
Key Features
Product Features
Heavy-Duty Aluminium Construction
Manufactured using high-strength 6063 aluminium alloy, providing outstanding durability, corrosion resistance, and structural integrity.
Extra Large Sliding Panels
Engineered to accommodate sliding panels up to 3300 mm in height, making it ideal for expansive architectural openings.
Superior Load Capacity
Supports sash weights up to 250 kg, ensuring reliable and effortless operation for oversized sliding doors and windows.
Premium Glass Compatibility
Designed to support glazing up to 26 mm, including laminated, insulated, and toughened glass options.
Elegant Slim Profile
The 23 mm visible interlock enhances the modern appearance while maximizing glass visibility and natural daylight.
Advanced Locking System
Compatible with single-point and multi-point locking systems for enhanced safety and security.
Technical Specifications
|
Specification |
Details |
|
Profile Alloy |
6063 Aluminium |
|
Maximum Window Height |
3300 mm |
|
Frame Corner |
45° |
|
Sash Corner |
45° / 90° |
|
Sash Size |
35 mm / 73.15 mm |
|
Visible Interlock Width |
23 mm |
|
Weight Capacity |
Up to 250 kg |
|
Glass Thickness |
Up to 26 mm |
|
Locking System |
Single / Multi-Point |
|
Mosquito Mesh Solution |
Yes |
|
2 Track Depth |
92.1 mm / 47 mm |
|
3 Track Depth |
140 mm / 47 mm |
Applications
The 35mm Gulf Extended Sliding Series is ideal for:
