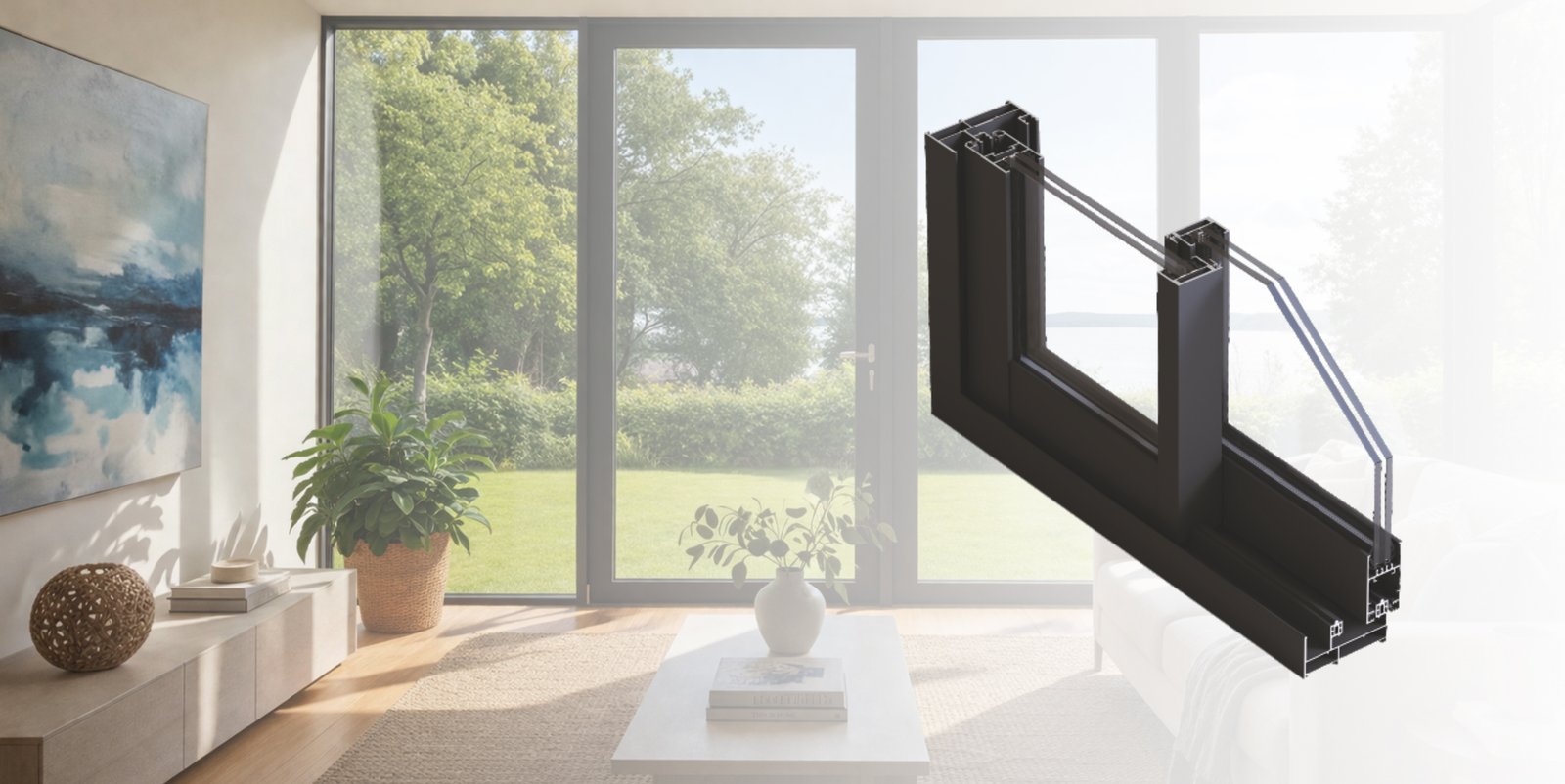

Grand S104 Sliding Series
Grand S104 Sliding Series
Premium Ultra Heavy-Duty Aluminium Sliding Window & Door System
The Grand S104 Sliding Series is a flagship aluminium sliding system engineered for extra-large architectural openings and demanding structural applications. Manufactured from premium 6063-grade aluminium alloy, this series combines exceptional strength, smooth sliding performance, and elegant aesthetics to meet the requirements of modern residential, commercial, and high-rise developments.
Designed to accommodate large-format glass panels, support up to 350 kg sash weight, and reach window heights of up to 3600 mm, the Grand S104 Sliding Series delivers unmatched performance, durability, and contemporary design.
Engineered for Grand Architectural Spaces
The Grand S104 Sliding Series is built for projects where expansive openings, panoramic views, and premium engineering are essential. Its robust profile design ensures maximum structural stability while maintaining slim, elegant sightlines that allow abundant natural light.
Ideal for luxury villas, premium apartments, hotels, office towers, and commercial spaces, the Grand S104 Sliding Series offers exceptional reliability, effortless operation, and long-lasting performance.
Key Features
Product Features
Premium Aluminium Construction
Manufactured using high-strength 6063 aluminium alloy for exceptional durability, corrosion resistance, and structural stability.
Designed for Large Openings
Supports window heights up to 3600 mm, making it ideal for floor-to-ceiling sliding doors and panoramic window systems.
Exceptional Load Capacity
Engineered to carry sliding sashes weighing up to 350 kg, ensuring smooth and reliable performance even with oversized panels.
Large Glass Compatibility
Supports glazing up to 26 mm, making it suitable for insulated, laminated, and toughened glass systems.
Modern Slim Appearance
The 27.09 mm visible interlock offers a sleek architectural look while maximizing glass visibility and natural daylight.
Advanced Security
Compatible with single-point and multi-point locking systems to provide enhanced safety and secure operation.
Technical Specifications
|
Specification |
Details |
|
Profile Alloy |
6063 Aluminium |
|
Maximum Window Height |
3600 mm |
|
Frame Corner |
45° |
|
Sash Corner |
90° |
|
Sash Size |
40.40 mm / 60 mm |
|
Visible Interlock Width |
27.09 mm |
|
Weight Capacity |
Up to 350 kg |
|
Glass Thickness |
Up to 26 mm |
|
Locking System |
Single / Multi-Point |
|
Mosquito Mesh Solution |
Yes |
|
2 Track Depth |
88.7 mm / 42 mm |
|
3 Track Depth |
137.1 mm / 42 mm |
Ideal Applications
The Grand S104 Sliding Series is perfectly suited for:
